SpringBoot實現微信掃碼支付starter封裝？

基于啟動類上的注解@SpringBootApplication中的@EnableAutoConfiguration來開啟自動化配置，這個注解通過@Import來導入了配置類，如下圖所示：

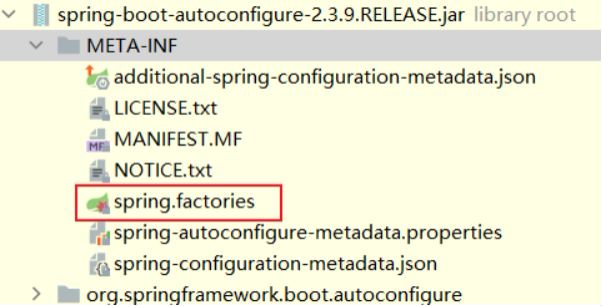

上述配置類會加載所有jar包以及源碼下的META-INF下得spring.factories文件，如下圖所示：

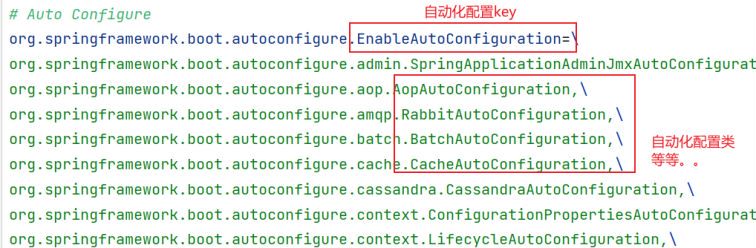

然后會加載配置中指定的自動化配置key所對應的所有自動化配置類，示例如下圖所示：

但是自動化配置類并不是都需要加載的，springBoot通過自動化配置類上添加的各種條件注解@Conditional來判斷這個自動化配置類是否滿足條件，如果滿足條件，即加載配置類，如下圖webmvc自動化配置類示例：

微信掃碼支付starter封裝

流程分析--逆向思維

我們最終需要能夠?qū)崿F(xiàn)的目的 -->引入依賴，yaml中做好配置，直接依賴注入xxxTemplate能夠直接使用。

--->需要?jiǎng)?chuàng)建一個xxxTemplate對象---> 提供一個xxxTemplate類，封裝掃碼支付的api，一些環境級別的參數做成配置。

--> 提供xxxProperties配置類，然后加載yaml中的配置。

實現步驟整理

01.創建工程，引入相關依賴

提供WxPayProperties配置類，用于加載application.yaml中的環境配置

提供WxPayTemplate類，封裝掃碼支付的api，環境配置依賴注入得到

提供配置類，啟動WxPayProperties類對象，創建WxPayTemplate對象

提供META-INF/spring.factory配置類，配置自動化配置

創建新測試工程，測試starter使用

代碼實現

1.創建工程，引入相關依賴

<dependencies>
        <dependency>
            <groupId>com.github.wechatpay-apiv3</groupId>
            <artifactId>wechatpay-apache-httpclient</artifactId>
            <version>0.4.9</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.83</version>
        </dependency>
    </dependencies>

提供WxPayProperties配置類，用于加載application.yaml中的環境配置

package com.heima.wxpay.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@ConfigurationProperties(prefix = "wxpay")
public class WxPayProperties {

    private String mchId = "1561414331"; //商戶號
    //private String appId = "wx6592a2db3f85ed25"; //應用號
    private String appId = "wxffb3637a228223b8"; //應用號
    private String privateKey = "-----BEGIN PRIVATE KEY-----\n" +
            "MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQDBHGgIh80193Gh\n" +
            "dpD1LtMZfTRpcWI0fImyuBCyrd3gYb3rrsARebGcHdJsQA3mVjVqVp5ybhEZDPa4\n" +
            "ecoK4Ye1hTppNpI/lmLt4/uUV/zhF5ahli7hi+116Ty6svHSbuMQBuUZeTFOwGrx\n" +
            "jvofU/4pGIwh8ZvkcSnyOp9uX2177UVxDBkhgbZbJp9XF2b83vUa5eHo93CziPzn\n" +
            "3hFdAlBCdTXB7DH+m0nN3Jou0szGukvq7cIgGpHku4ycKSTkIhhl9WRhN6OoSEJx\n" +
            "q88MXzjkzTruc85PHN52aUTUifwg3T8Y4XqFQ61dTnEmgxeD2O6/pLdB9gLsp6yC\n" +
            "GqN5Lqk7AgMBAAECggEBAL4X+WzUSbSjFS9NKNrCMjm4H1zgqTxjj6TnPkC1mGEl\n" +
            "tjAHwLgzJBw62wWGdGhWWpSIGccpBBm1wjTMZpAZfF66fEpP1t1Ta6UjtGZNyvfF\n" +
            "IZmE3jdWZ/WXGBnsxtFQKKKBNwrBW0Fbdqq9BQjLxLitmlxbmwrgPttcy855j6vZ\n" +
            "qq4MBT1v8CtUT/gz4UWW2xWovVnmWOrRSScv7Nh0pMbRpPLkNHXrBwSSNz/keORz\n" +
            "XB9JSm85wlkafa7n5/IJbdTml3A/uAgW3q3JZZQotHxQsYvD4Zb5Cnc9CPAXE5L2\n" +
            "Yk877kVXZMGt5QPIVcPMj/72AMtaJT67Y0fN0RYHEGkCgYEA38BIGDY6pePgPbxB\n" +
            "7N/l6Df0/OKPP0u8mqR4Q0aQD3VxeGiZUN1uWXEFKsKwlOxLfIFIFk1/6zQeC0xe\n" +
            "tNTKk0gTL8hpMUTNkE7vI9gFWws2LY6DE86Lm0bdFEIwh6d7Fr7zZtyQKPzMsesC\n" +
            "3XV9sdSUExEi5o/VwAyf+xZlOXcCgYEA3PGZYlILjg3esPNkhDz2wxFw432i8l/B\n" +
            "CPD8ZtqIV9eguu4fVtFYcUVfawBb0T11RamJkc4eiSOqayC+2ehgb+GyRLJNK4Fq\n" +
            "bFcsIT+CK0HlscZw51jrMR0MxTc4RzuOIMoYDeZqeGB6/YnNyG4pw2sD8bIwHm84\n" +
            "06gtJsX/v10CgYAo8g3/aEUZQHcztPS3fU2cTkkl0ev24Ew2XGypmwsX2R0XtMSB\n" +
            "uNPNyFHyvkgEKK2zrhDcC/ihuRraZHJcUyhzBViFgP5HBtk7VEaM36YzP/z9Hzw7\n" +
            "bqu7kZ85atdoq6xpwC3Yn/o9le17jY8rqamD1mv2hUdGvAGYsHbCQxnpBwKBgHTk\n" +
            "eaMUBzr7yZLS4p435tHje1dQVBJpaKaDYPZFrhbTZR0g+IGlNmaPLmFdCjbUjiPy\n" +
            "A2+Znnwt227cHz0IfWUUAo3ny3419QkmwZlBkWuzbIO2mms7lwsf9G6uvV6qepKM\n" +
            "eVd5TWEsokVbT/03k27pQmfwPxcK/wS0GFdIL/udAoGAOYdDqY5/aadWCyhzTGI6\n" +
            "qXPLvC+fsJBPhK2RXyc+jYV0KmrEv4ewxlK5NksuFsNkyB7wlI1oMCa/xB3T/2vT\n" +
            "BALgGFPi8BJqceUjtnTYtI4R2JIVEl08RtEJwyU5JZ2rvWcilsotVZYwfuLZ9Kfd\n" +
            "hkTrgNxlp/KKkr+UuKce4Vs=\n" +
            "-----END PRIVATE KEY-----\n"; //私鑰字符串
    private String mchSerialNo = "25FBDE3EFD31B03A4377EB9A4A47C517969E6620"; //商戶證書序列號
    private String apiV3Key = "CZBK51236435wxpay435434323FFDuv3"; //V3密鑰

}

提供WxPayTemplate類，封裝掃碼支付的api，環境配置依賴注入得到。

2個參數實體類：

package com.heima.wxpay.dto;

import lombok.Builder;
import lombok.Data;

@Builder
@Data
public class NativePayParams {

    private String appid; // 應用id
    private String mchid;  // 商戶id
    private String description; //商品描述
    private String out_trade_no; //訂單號
    private String notify_url; // 支付成功回調通知地址
    private Amount amount; //訂單金額信息
}

package com.heima.wxpay.dto;

import lombok.Builder;
import lombok.Data;

@Builder
@Data
public class Amount {
    private Integer total;
    private String currency;
}

工具類：

package com.heima.wxpay.config;

import com.alibaba.fastjson.JSON;
import com.heima.wxpay.dto.Amount;
import com.heima.wxpay.dto.NativePayParams;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.util.EntityUtils;

import java.io.IOException;
import java.util.Map;

public class WxPayTemplate {

    private WxPayProperties wxPayProperties;

    private CloseableHttpClient httpClient;

    public WxPayTemplate(WxPayProperties wxPayProperties,CloseableHttpClient httpClient) {
        this.wxPayProperties = wxPayProperties;
        this.httpClient = httpClient;
    }

    public String nativePay(Integer total, String description, String outTradeNo) throws Exception{
        HttpPost httpPost = new HttpPost("https://api.mch.weixin.qq.com/v3/pay/transactions/native");
        // 請求body參數

        Amount amount = Amount.builder().currency("CNY").total(total).build();

        NativePayParams nativePayParams = NativePayParams.builder().appid(wxPayProperties.getAppId())
                .description(description)
                .mchid(wxPayProperties.getMchId())
                .notify_url("https://36d5634033.vicp.fun/native/notify")
                .out_trade_no(outTradeNo)
                .amount(amount)
                .build();


        String reqdata = JSON.toJSONString(nativePayParams);
        StringEntity entity = new StringEntity(reqdata,"utf-8");
        entity.setContentType("application/json");
        httpPost.setEntity(entity);
        httpPost.setHeader("Accept", "application/json");

        //完成簽名并執行請求
        CloseableHttpResponse response = httpClient.execute(httpPost);

        String url = "";
        try {
            int statusCode = response.getStatusLine().getStatusCode();
            if (statusCode == 200) { //處理成功
                System.out.println("success,return body = " + EntityUtils.toString(response.getEntity()));
                url = JSON.parseObject( EntityUtils.toString(response.getEntity()), Map.class).get("code_url").toString();
            } else if (statusCode == 204) { //處理成功，無返回Body
                System.out.println("success");
            } else {
                System.out.println("failed,resp code = " + statusCode+ ",return body = " + EntityUtils.toString(response.getEntity()));
                throw new IOException("request failed");
            }
        } finally {
            response.close();
        }
        return url;
    }
}

提供配置類，啟動WxPayProperties類對象，創建WxPayTemplate對象。

package com.heima.wxpay.config;

import com.wechat.pay.contrib.apache.httpclient.WechatPayHttpClientBuilder;
import com.wechat.pay.contrib.apache.httpclient.auth.AutoUpdateCertificatesVerifier;
import com.wechat.pay.contrib.apache.httpclient.auth.PrivateKeySigner;
import com.wechat.pay.contrib.apache.httpclient.auth.WechatPay2Credentials;
import com.wechat.pay.contrib.apache.httpclient.auth.WechatPay2Validator;
import com.wechat.pay.contrib.apache.httpclient.util.PemUtil;
import org.apache.http.impl.client.CloseableHttpClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.io.ByteArrayInputStream;
import java.security.PrivateKey;

@Configuration
@EnableConfigurationProperties(WxPayProperties.class)
public class WxPayAutoConfig {


    @Bean
    public CloseableHttpClient httpClient(WxPayProperties wxPayProperties) throws Exception{
        // 加載商戶私鑰（privateKey：私鑰字符串）
        PrivateKey merchantPrivateKey = PemUtil
                .loadPrivateKey(new ByteArrayInputStream(wxPayProperties.getPrivateKey().getBytes("utf-8")));

        // 加載平臺證書（mchId：商戶號,mchSerialNo：商戶證書序列號,apiV3Key：V3密鑰）
        AutoUpdateCertificatesVerifier verifier = new AutoUpdateCertificatesVerifier(
                new WechatPay2Credentials(wxPayProperties.getMchId(), new PrivateKeySigner(wxPayProperties.getMchSerialNo(), merchantPrivateKey)),wxPayProperties.getApiV3Key().getBytes("utf-8"));

        // 初始化httpClient
        return WechatPayHttpClientBuilder.create()
                .withMerchant(wxPayProperties.getMchId(), wxPayProperties.getMchSerialNo(), merchantPrivateKey)
                .withValidator(new WechatPay2Validator(verifier)).build();
    }

    @Bean
    public WxPayTemplate wxPayTemplate(WxPayProperties wxPayProperties,CloseableHttpClient httpClient){

        return new WxPayTemplate(wxPayProperties,httpClient);
    }

}

提供META-INF/spring.factory配置類，配置自動化配置

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
com.heima.wxpay.config.WxPayAutoConfig

創建新測試工程，測試starter使用，導入starter依賴：

<dependency>
    <groupId>com.heima</groupId>
    <artifactId>wx_pay_starter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

直接springBoot測試

package com.itheima.wxpay;


import com.heima.wxpay.config.WxPayTemplate;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

@SpringBootTest
public class StarterTest {

    @Autowired
    private WxPayTemplate wxPayTemplate;

    @Test
    public void testNativePay() throws Exception{

        String url = wxPayTemplate.nativePay(1, "javaEE企業級開發", "ADFADSFS4353534");
        System.out.println(url);
    }
